PH Monitoring System

NS-PHMS is a wireless, flexible and scalable PH monitoring system.
Using NS-PHMS you can monitor PH in the lab, soil, low ionic and ultra-pure water, high PH solutions, samples containing heavy metals, hydroponics / aquaponics, wine and other liquor.

NS-T&RH Overview:

Using off the shelf components we lower your costs (acquisition and maintenance)

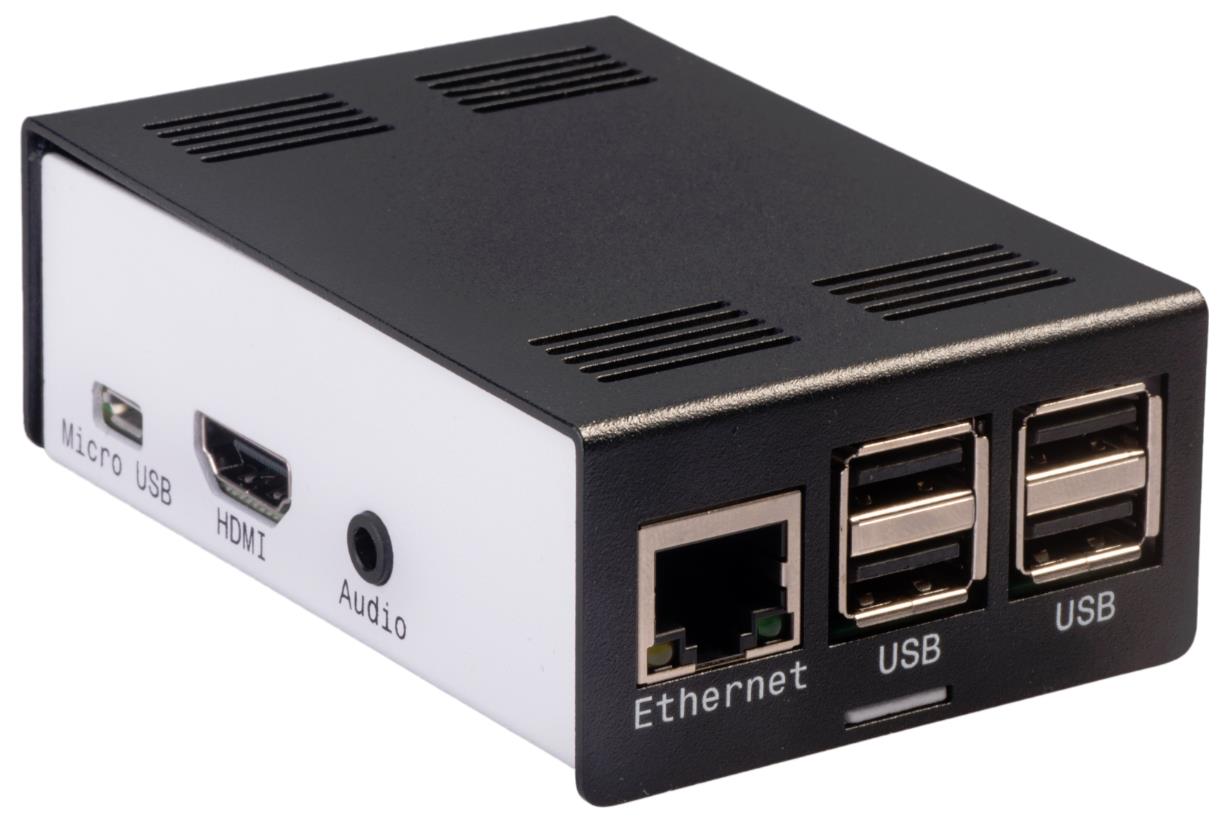

• The system is using Raspberry PI3 B+ as single board computer
    • PH sensors are:
    • High Precision Atlas Scientific sensors
    • Outstanding long-term stability
    • Factory Calibrated
    • Sensor can be changed without replacing the whole unit (reuse the Raspberry Pi)

PH Monitoring Using Atlas Scientific PH Probe and Raspberry Pi3

Easy to setup
    • Sensors use your existing WIFI network to send data to the server
    • Sensors can be accessed and configured remotely via VNC
    • Sensors are configurable and take measurements at time intervals from 1/second to 1/day

Email and SMS Notifications
    • Send emails and/or SMS when PH measurements are out of range
    • Easy to configure the list of who needs to be notified
    • Everything is done through a user-friendly web-based interface

Security
   • Multiple user levels
    • Easy to update and reconfigure
    • Configure user rights for each screen and function

Responsive Web Design
    • Uses Bootstrap the most popular HTML, CSS and JS framework for developing responsive, mobile first experience on the web
   • Responsive design fits on any screen
    • Mobile App gives you great advantage and improves your productivity

Main Features
All features can be accessed from Main Screen that loads after a successful login

Advanced Search
    • Easy to search by
          • Sensor
          • Date & Time
          • PH
          • Multiple search operators (Contains, Equal, Not Equal, Starts with, etc.)

Charts
• PH data can be also displayed as a chart
• Information can be filtered based on Sensor Name and Time Stamp of the measurement

Dashboards
• Dashboards display multiple charts on a single page, making very intuitive the interpretation of the collected measurements

Admin
    • Add, Edit or Delete: Sensor Name, Location, PH Offset, Lower Limit, Upper Limit
    • Admin functions are available only for users with higher access level
    • These settings are critical for good functionality of the whole system

    • New users can be added from Admin Web Page
    • Or new users can be created from login page by clicking the Sign Up Link
     • Or Active Directory can be used and then you login with your Windows credentials

NS-PHMS - PH Monitoring System - Admin Features

NS-PHMS - PH Monitoring System - Admin Features - Users

For more details:
• Download the NS-PH Monitoring presentation

For a Demo:
• Contact us at customDB@nicks-software.com
• We help with installation and configuration
• We get you up and running quickly

Pricing:
• For RFQ contact us at:
• customDB@nicks-software.com
• +61416563915
